Specification:
Size:approx. 235 * 63 * 34mm
ACCurrent: 0.1 A to 1000A
InsulationTeat: 100K to 2000M (With option 500V insulation tester unit)
ACVoltage: 1V to 750VDC
Voltage:1V to 1000V
Resistance:100m to 20k
ContinuityTest: 50±25 with audio tone
MeasurementMethod: Dual slope integration technical
ReadingRate: 3 reading/ Sec
Polarity:Automatic, indicator minus. assumed plus
OverloadIndication: Blanking of all digits. except MSD. decimate point and sign.
AppropriatePower Requirements: 9V battery (Not included)
BatteryLife: Up to 200 hours typical with Alkaline, up to 200 hours typical with Zinccarbon
BatteryIndication: Display indicates LD BAT when approximately 20% of battery liferemains
Display:LCD. 3-1/2 digital (1999 count) 0.5" high
DataHold: All function and ranges with this features
Feature:Small size, light weight.
Stableperformance, lower power consumption.
Easyto use.
Convenientto carry.
Durablein use.

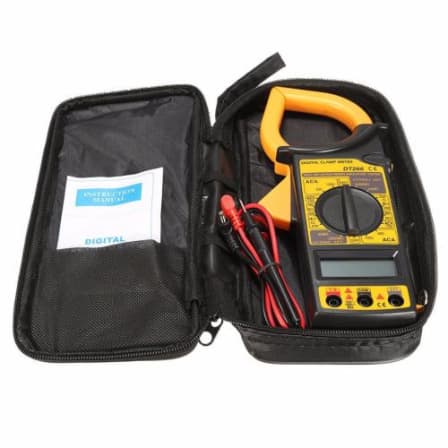

Package included:

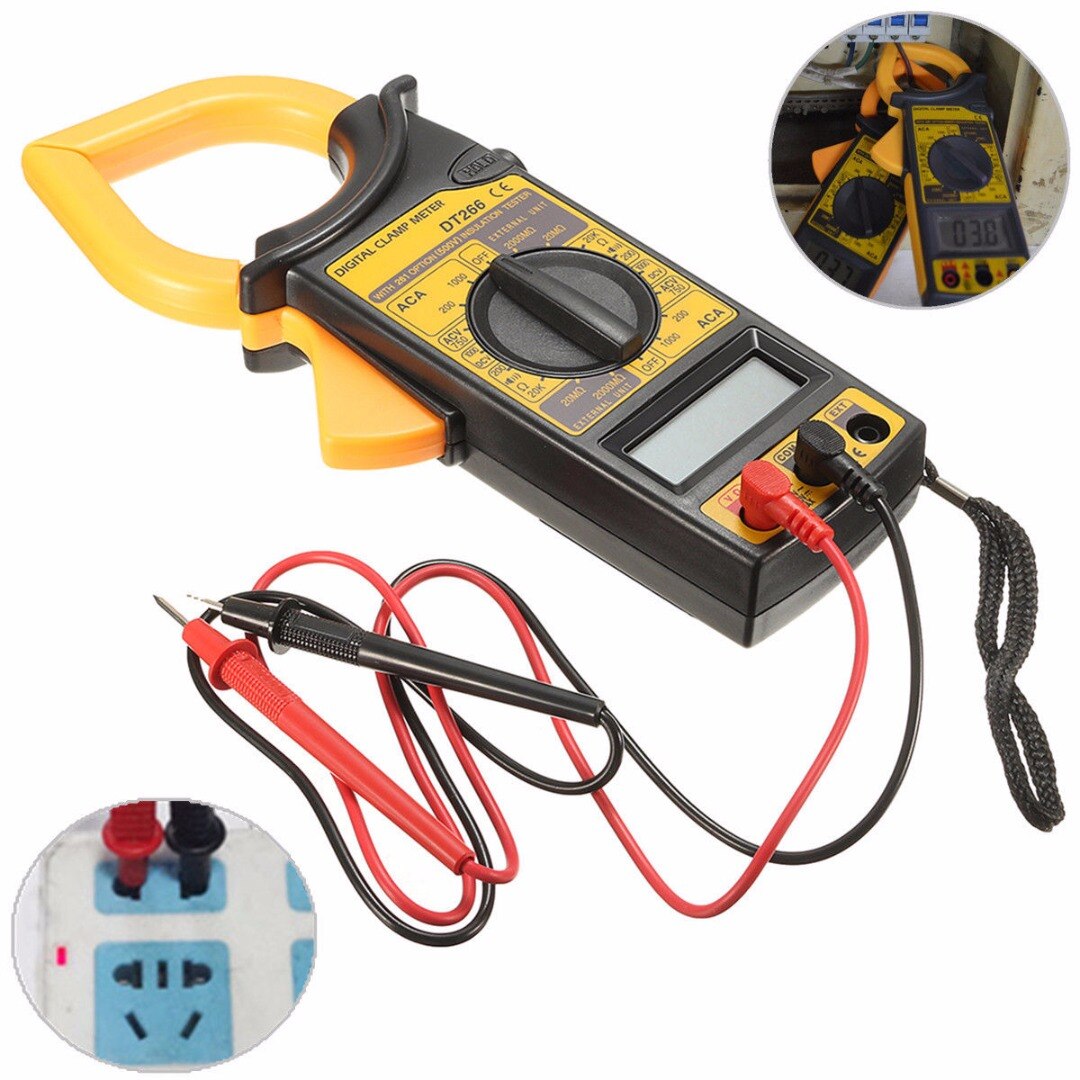

1x Digital Clamp Meter
1x Test Cable
1x Carrying Case
