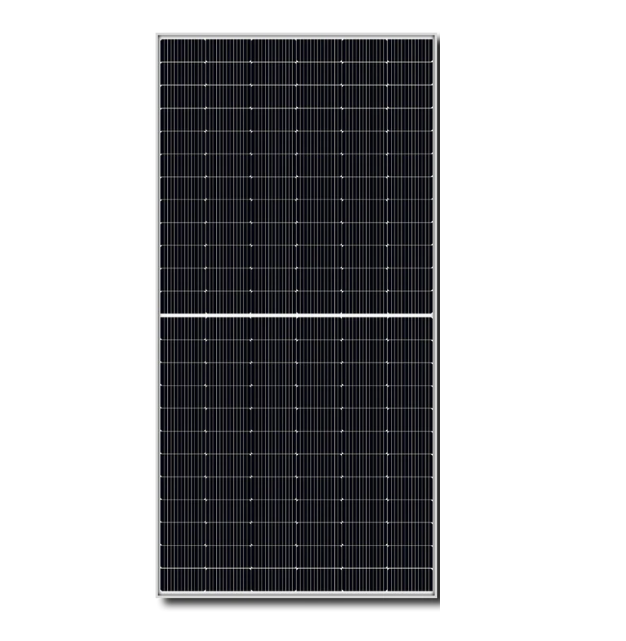

550W Mono TheSunPays 10BB Solar Panel
550W Mono TheSunPays 10BB Solar Panel
50 in stock
Description
Description
Specification highlights:
550W Monocrystalline PV panel.
10 Busbar design.
144 A-grade monocrystalline solar cells.
With a 12-year product warranty and a 30-year design life warranty.
Certifications include: German (TUV) certified, IEC61215, IEC61730, IEC61701, IEC62716, IEC62804 and CE
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Electrical specifications:
Maximum efficiency: 21.3%
Maximum power (Pmax): 550W
Maximum power voltage (Vmp): 41.96V
Maximum power current (Imp): 13.11A
Open circuit voltage (Voc): 49.9V
Short circuit current (Isc): 14A
Maximum system voltage: 1500VDC
Maximum series fuse rating: 25A
Mechanical specifications:
Cell size: 182 x 91mm
Cell type: A-grade monocrystalline solar cell
Number of cells: 144 (6 x 24)
Weight: 28.6kg
Dimensions: 2279 x 1134 x 30mm
Max Static load front: 5400 Pascal
Max Static load back: 2400 Pascal
Junction box: IP68 rated, 3 Diodes
Connector: MC4
Cables: Photovoltaic technology cable 4.0 mm2, 300mm length
Max series fuse rating : 25A
Warranty:
Product warranty: 12 years
Design life warranty: 30 years
Efficiency warranty: 90% in 12 years, 80% in 30 years**
